Sleeps 4
-
Bunkhouse
-
20ft Long
-
3,046 lbs
-
JAVA

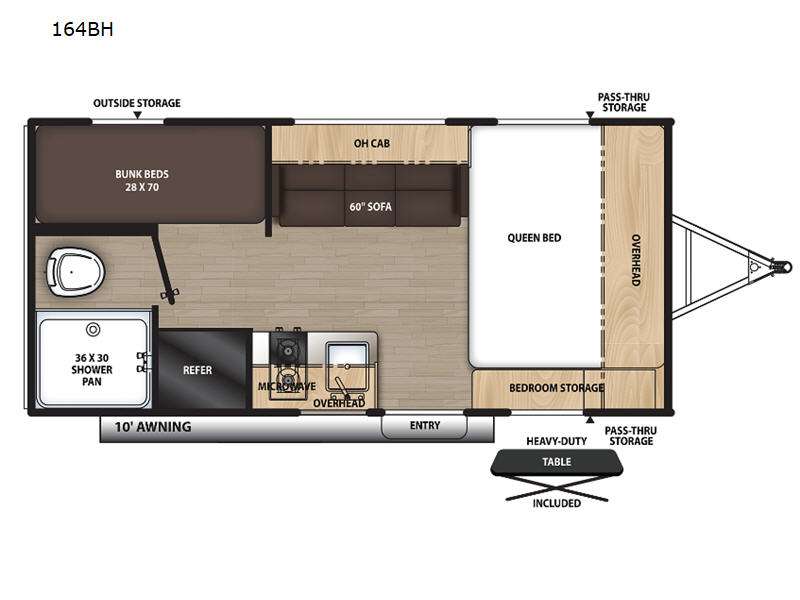

164BH Floorplan
Specifications
Sleeps | 4 | Length | 19 ft 6 in |
Ext Width | 7 ft 6 in | Ext Height | 10 ft 1 in |
Interior Color | JAVA | Hitch Weight | 386 lbs |
GVWR | 4396 lbs | Dry Weight | 3046 lbs |
Cargo Capacity | 1340 lbs | Fresh Water Capacity | 44 gals |
Grey Water Capacity | 30 gals | Black Water Capacity | 30 gals |
Furnace BTU | 20000 btu | Number Of Bunks | 2 |
Available Beds | Queen | Refrigerator Type | 12 Volt |
Refrigerator Size | 10 cu ft | Cooktop Burners | 2 |
Shower Size | 36" x 30" | Number of Awnings | 1 |
LP Tank Capacity | 20 lbs. | Water Heater Capacity | 6 gal |
Water Heater Type | Gas/Electric DSI | AC BTU | 13500 btu |
Awning Info | 10' Power with Multicolored LED Light Strip | Axle Count | 1 |
Number of LP Tanks | 1 | Shower Type | Standard |
Electrical Service | 30 amp | VIN | 5ZT2CAEC6PK005662 |
Description
This Catalina Summit Series 7 travel trailer 164BH highlights:
- Bunk Beds
- Corner Bath
- Pass-Through Storage
- Jiffy Sofa
- Heavy-Duty Table
This travel trailers is perfect for a young family. You can easily sleep four or more with the rear set of bunk beds and queen bed up front. There is also a 60" jiffy sofa for inside down-time, as well as complete kitchen and bath amenities so you can cook and stay clean while traveling. The rear corner bath features a toilet and 36" x 30" shower, and it's conveniently located next to the bunk beds which is great for little ones at night. Cooking inside will be easy with a two-burner cooktop and single sink, plus there is also a microwave oven for snacks and things that you can easily warm up. If you plan to spend most of your time outdoors, you will find plenty of storage space in the front pass-through compartment and beneath the bunks in back for outdoor toys and gear. There is also plenty of storage inside as well.
With any Catalina Summit Series 7' by Coachmen RV, you can create an easier adventure with the versatility and simplicity of the shorter lengths and lighter weights! Each includes a premium exterior graphics package, a smooth HD aluminum radius front, and Dexter EZ lube axles with leaf spring suspension. The exterior offers a heavy duty standard tongue jack, a diamond plate rock guard to protect against road debris, exterior RG-6 coax cabling and satellite prep, rear view camera prep, and flush mount baggage doors with radius corners for your outdoor gear. Inside, you will enjoy premium JBL interior speakers, USB charging ports, seamless Thermofoil countertops throughout, an under-mount farm style sink for easy cleanup, and a Slim Line range hood to keep the cooking smells outside. It's time to choose an affordable and maneuverable single axle trailer today!
Features
Standard Features (2023)
Exterior
- Electric Awning w/Multicolor LED Strip & Remote
- Black Tank Flush
- Battery Disconnect Switch
- Siphon 360 Holding Tank Roof Vent
- Heavy Duty Standard Tongue Jack
- (1)20lb. LP Tanks
- LP Quick Connect (w/CK)
- Flush Mount Baggage Doors w/Radius Corners
- Diamond Plate Rock Guard
- Stabilizer Jacks
- G20 Tinted Privacy Windows
- Premium JBL Exterior Speakers(s)
- Friction Hinge Door
- Radius Cornered Fiberglass Entry Door
- Exterior 110V G.F.C.I Protected Receptacle
- Exterior RG-6 Coax Cabling and Satellite Prep
- Rain Gutters with Drip Spouts
- SolidStep Entrance Steps IPO Flip-Down Steps (Main Entrance Only) (n/a 164BHX)
- Rear View Camera Prep
- Bottle Openers (Exterior Camp Kitchens)
- Pets - "Leash Link" Quick Hookup D-Ring
- Universal Solar Prep w/Roof & Chg. Controller Connections & Wiring
Interior
- One Control Smart RV Tech Monitor Panel (uses LCI OneControl - App)
- Premium Audio JBL Aura Cube Multi-Zone Function Media Center
- Premium JBL Interior Speaker(s)
- 10 Cu. Ft. 12V Refrigerator (n/a 164BHX: has 3.3 cu. ft.)
- Seamless Thermofoil Countertops Throughout
- Under-mount Farm Style Sink
- High Rise Bullet Style Kitchen Faucet
- 2 Burner High Output Cooktop w/Flush Glass Top
- Slim Line Range Hood
- SST Microwave W/Glass Turn Table
- Congoleum Woodplank Linoleum Flooring
- 4000 Lumen LED Interior Lighting
- Jiffy Sofa w/Flip Down Cup Holder/Arm Rest
- Easy Access Kickboard Storage Underneath Jiffy Sofa (Per Floorplan)
- Murphy Bed Sofa (Per floorplan)
- Hard Valance Window Treatments
- Pedestal Thermofoil Dinette Table (184BHS)
- Portable Dinette Table (N/A 164BHX, 184BHS)
- Under Bench Dinette Storage (Per Floorplan)
- 12V 14" Bathroom Power Vent Fan
- Marine Toilet with Foot Flush
- ABS Tub/Shower Surround w/Shelves (n/a 164BHX)
- Mirror
- Bedroom Surface Mounts USB Ports (Each Night Stand)
- Kitchen USB's & Outlets
- USB Surface Mounts Near Bunk Beds
- Master Bedroom Overhead Shelf
- Designer Fitted Master Bed Sheet
- Teddy Bear Bunk Mats
- Full Lino in Slide-Outs and Bedrooms (Carpetless)
Construction & Equipment
- Cambered Structural Steel I-Beam Frame
- New Road Defense Chassis Powder Coating
- Full Length Frame Outriggers
- 5/8" Tongue & Groove Plywood Floor Decking
- 2"x2" Floor Joists on Approximately 12" Centers
- 4" Floor To Frame Steel Lag Bolts
- Darco Subfloor Protective Wrap/Enclosure
- Seamless Alpha Roof Membrane with Lifetime Warranty
- Cross-Braced Engineered Roof Trusses w/5" Crown
- 3/8" Fully Decked Walk-On Roof
- Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
- Hardwood Cabinet Doors
- 5/8" Plywood Under Bed & Dinette Base
- 78" Interior Height (6'6")
- Norco Cable Slide Out
- R-7 Fiberglass Insulation Throughout
- 6 Gal. Gas/Electric DSI Water Heater
- Water Heater By-Pass Winterization Kit
- 12V Demand Water Pump
- Premium Exterior Graphics Package
- Platinum .024" Aluminum Exterior w/.030 Skirt Metal
- Smooth HD Aluminum Radius Front
- Dexter EZ Lube Axles w/Leaf Spring Suspension
- Self Adjusting Brakes
- Roto-Cast Holding Tanks
- Bumper w/ Drain Hose Carrier and End Caps
- 19,000 BTU Direct Furnace w/Wall Thermostat
- 13,500 BTU Central A/C
- 30 Amp Elect. Service w/ 100v 45-Amp Power Convertor.
- Rugged Pro Black Steel Wheels
- Magnetic Hands Free Baggage Door Latches
Safety Features
- Smoke Alarm
- LP/CO Gas Detector
- Fire Extinguisher
- Fire Escape Windows
- Entrance Door Window
- Dead-Bolt Lock on Entry Door
- SafeRide RV Motor Club (1 YR Roadside Assistance)
Options
- 7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversible Door Inserts
- Peak Performance Solar Package - 30A Controller w/ 200W Panel
- Steel Fold-Down Steps IPO SolidStep Entrance Steps (Standard 164BHX)
- Exterior Camp Kitchen (184BHS)
- Spare Tire w/ Tire Carrier (N/A 164BH/164RB)
- CSA Standards
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
