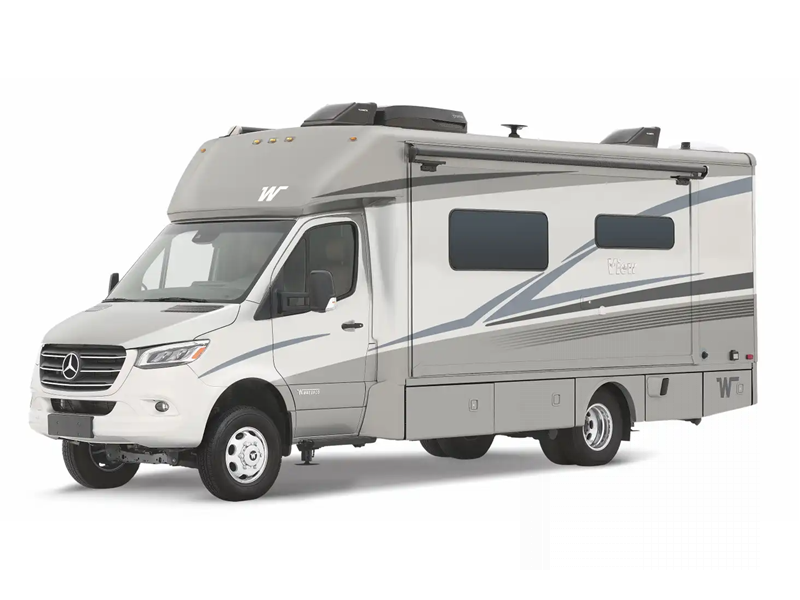

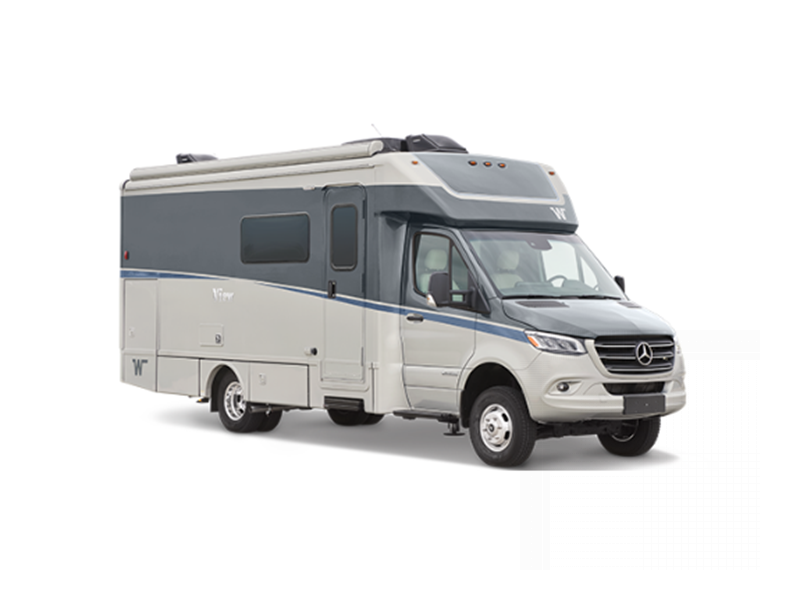

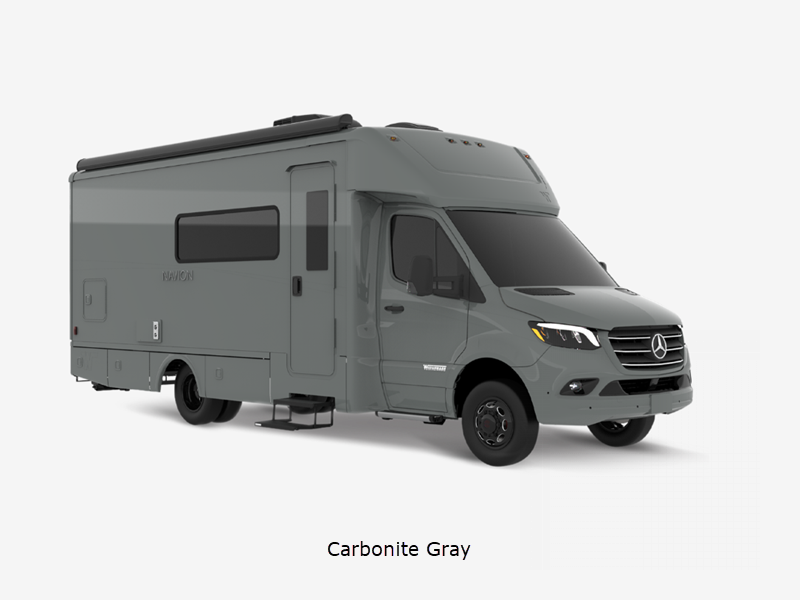

Winnebago View Motor Home Class C - Diesel

Previous
Next
1 of 38
These Winnebago View Class C Diesel motorhomes provide more of what you have been searching for in an RV. These coaches are the perfect blend between compact and spacious since they are small enough to enable easy driving yet big enough to carry all of the amenities you need. The swivel cab seats allow you to join the party going on in the coach once you are parked, and the tinted coach windows provide protection from fading for the interior furniture, as well as protection from the heat.

You will also experience the power and performance of the Mercedes-Benz Sprinter chassis that will not only get you wherever you dream to go, but will also provide exceptional fuel economy and a comfortable ride along the way. Each model provides all that you need while traveling, including flexible sleeping accommodations, a complete bath, and a kitchen area to easily cook light meals and snacks so that your travelers won't go hungry along the way!

For your next journey, why not turn it into the ultimate experience by taking along one of these Class C Diesel Winnebago View motorhomes!

  • Specifications

    Sleeps 5
    Slides 1
    Length 25 ft 8 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft 1 in
    Int Height 6 ft 8 in
    Interior Color Summit, Zinc

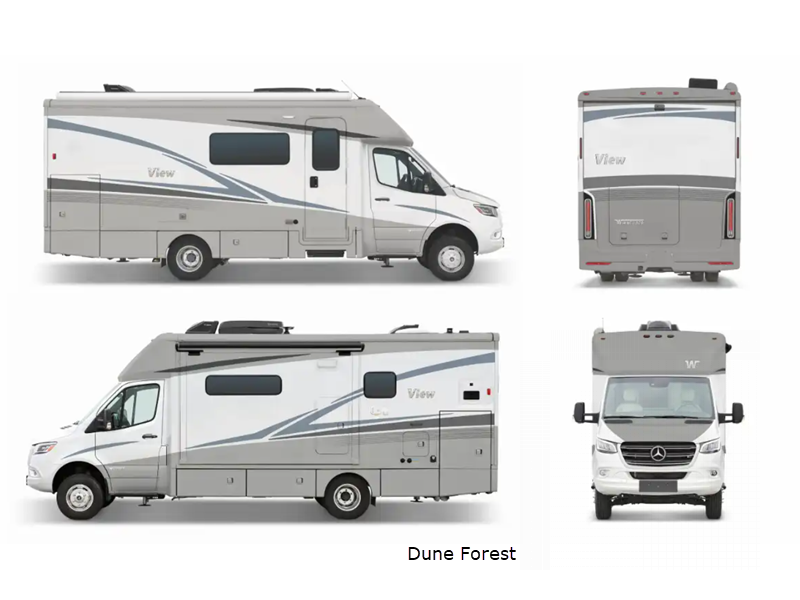

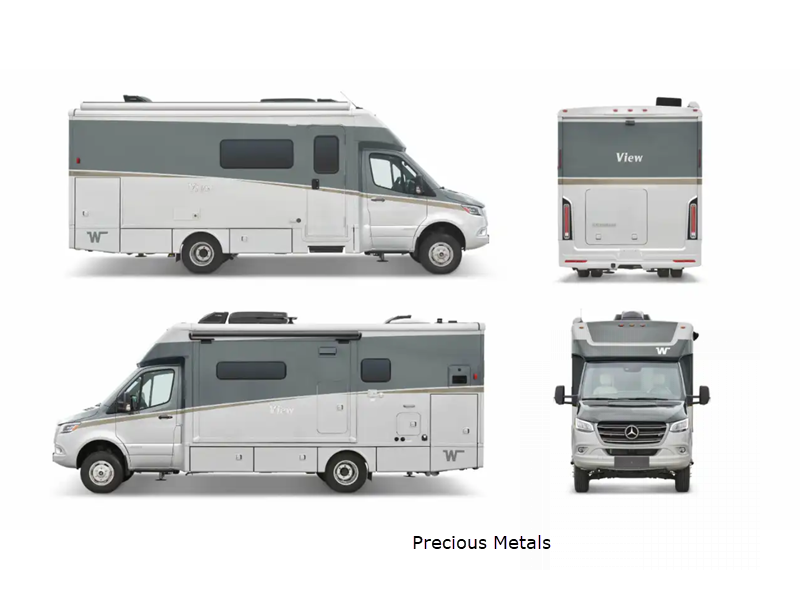

    Exterior Color Carbon Red, Cool Gray, Bay Mist, Dark Spiral Gray, Mineral, Sandstone
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 30 gals
    Grey Water Capacity 34 gals
    Black Water Capacity 40 gals
    Furnace BTU 20000 btu
    Generator 3,600 Watt Cummins Onan MicroQuiet LP
    Fuel Type Diesel
    Engine 3.0L 6-Cylinder
    Chassis Mercedes Benz Sprinter
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Refrigerator Type Norcold Double Door Compressor with Freezer
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 23" x 34" in
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 13 lbs.
    Water Heater Type Tankless
    AC BTU 15000 btu

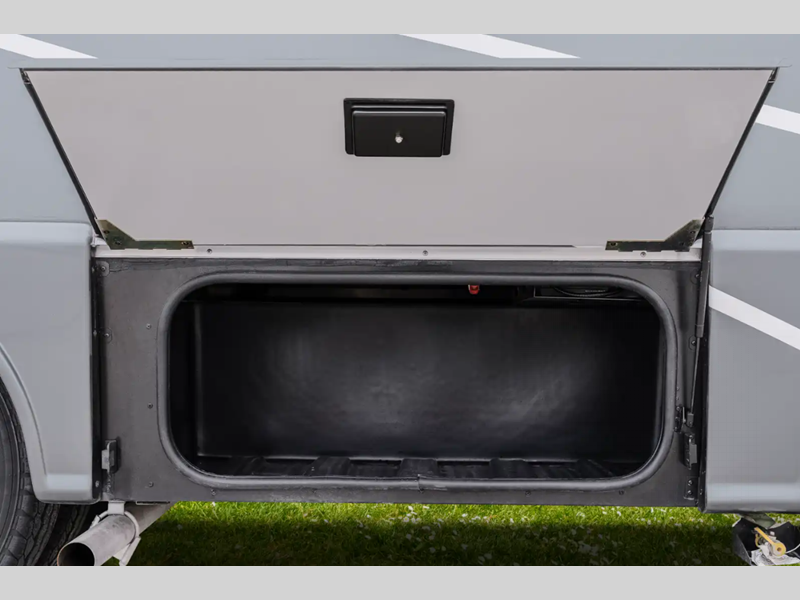

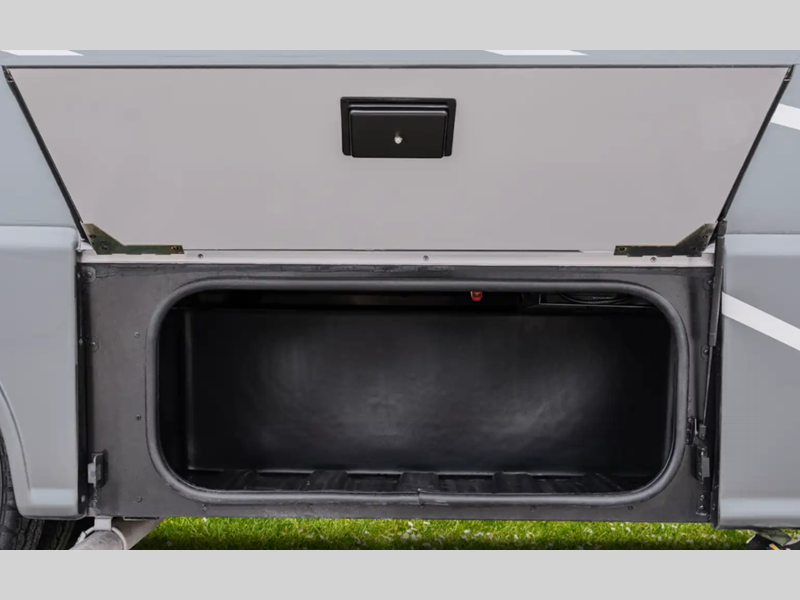

    Basement Storage 39 cu. ft.
    TV Info 32" HDTV Coach
    Awning Info 16' Electric with LED Lights
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • View 24G

    View 24G Floorplan Image

    Take a Virtual Tour

    Winnebago View 24G Class C Diesel motorhome highlights: Private Bedroom Cab Over ... more about View 24G

    Specifications

    Sleeps 5
    Slides 2
    Length 25 ft 8 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft 1 in
    Int Height 6 ft 8 in
    Interior Color Summit, Zinc
    Exterior Color Carbon Red, Cool Gray, Bay Mist, Dark Spiral Gray, Mineral, Sandstone
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 31 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 36 gals
    Furnace BTU 20000 btu
    Generator 3,600 Watt Cummins Onan MicroQuiet LP
    Fuel Type Diesel
    Engine 3.0L 6-Cylinder
    Chassis Mercedes Benz Sprinter
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type Norcold Double Door Compressor with Freezer
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 25.5" x 36" in
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 13 lbs.
    Water Heater Type Tankless
    AC BTU 15000 btu
    Basement Storage 53 cu. ft.
    TV Info 28" HDTV
    Awning Info 16' Electric with LED Lights
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • View 24J

    View 24J Floorplan Image

    Take a Virtual Tour

    Winnebago View 24J Class C Diesel motorhome highlights: U-Shaped Booth Dinette ... more about View 24J

    Specifications

    Sleeps 6
    Slides 1
    Length 25 ft 8 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft 1 in
    Int Height 6 ft 8 in
    Interior Color Summit, Zinc
    Exterior Color Carbon Red, Cool Gray, Bay Mist, Dark Spiral Gray, Mineral, Sandstone
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 32 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 34 gals
    Furnace BTU 20000 btu
    Generator 3,600 Watt Cummins Onan MicroQuiet LP
    Fuel Type Diesel
    Engine 3.0L 6-Cylinder
    Chassis Mercedes Benz Sprinter
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds Double
    Refrigerator Type Norcold Double Door Compressor with Freezer
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 26" x 30" in
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 13 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type 110 Volt/LP
    AC BTU 15000 btu
    Basement Storage 48 cu. ft.
    TV Info 28" HDTV
    Awning Info 16' Electric with LED Lights
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • View 24V

    View 24V Floorplan Image

    Take a Virtual Tour

    Winnebago View 24V Class C Diesel motorhome highlights: Sleeps Six Single Slide ... more about View 24V

    Specifications

    Sleeps 6
    Slides 1
    Length 25 ft 8 in
    Ext Width 7 ft 6 in
    Ext Height 11 ft 1 in
    Int Height 6 ft 8 in
    Interior Color Summit, Zinc
    Exterior Color Carbon Red, Cool Gray, Bay Mist, Dark Spiral Gray, Mineral, Sandstone
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 31 gals
    Grey Water Capacity 36 gals
    Black Water Capacity 36 gals
    Furnace BTU 20000 btu
    Generator 3,600 Watt Cummins Onan MicroQuiet LP
    Fuel Type Diesel
    Engine 3.0L 6-Cylinder
    Chassis Mercedes Benz Sprinter
    Horsepower 188 hp
    Fuel Capacity 26.4 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds Two Twin
    Refrigerator Type Norcold Double Door Compressor with Freezer
    Convection Cooking Yes
    Cooktop Burners 2
    Shower Size 19" x 28" x 34" in
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 13 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type 110 Volt/LP
    AC BTU 15000 btu
    Basement Storage 43 cu. ft.
    TV Info 28" HDTV
    Awning Info 16' Electric with LED Lights
    Gross Combined Weight 15250 lbs
    Shower Type Angled
    Electrical Service 30 amp

    Similar Floorplans

View Features:

Standard Features

Mercedes-Benz® Sprinter Chassis
  • 3.0L 6-Cylinder, 188HP, Turbo-Diesel Engine, 5-Speed Automatic Tip-Shift Transmission, 220 AMP Alternator
  • Adaptive ESP® Technology
  • Hydraulic Brakes with ABS
  • Trailer Hitch 5,000 LB Drawbar/500 LB Maximum Vertical Tongue Weight with 7-Pin Connector
  • Stainless Steel Wheel Liners (N/A 24G)
  • Alcoa Forged Aluminum Wheels (24G)

Cab Conveniences

  • Radio/Rearview Monitor System with DVD Receiver, 6.2" LCD Color Touch Screen, Handheld Remote, iPod®/MP3 Input, Rear Color Camera, Bluetooth®, SiriusXM®-Ready, Spotify®, AppRadio One
  • Cab Seats with Armrest, Adjustable Lumbar Support, Headrest, Recline, Swivel, and Slide
  • Driver and Passenger Airbags
  • 3-Point Seat Belts
  • Power Door Locks with Remote
  • Power Windows
  • Power Mirrors with Defrost and Turn Signals
  • Cruise Control
  • Chassis/House Battery Radio Power Switch
  • Power Steering with Tilt Wheel
  • Sunvisors
  • 12V Powerpoints
  • Pleated Windshield Blinds
  • Dash Appliqué Package

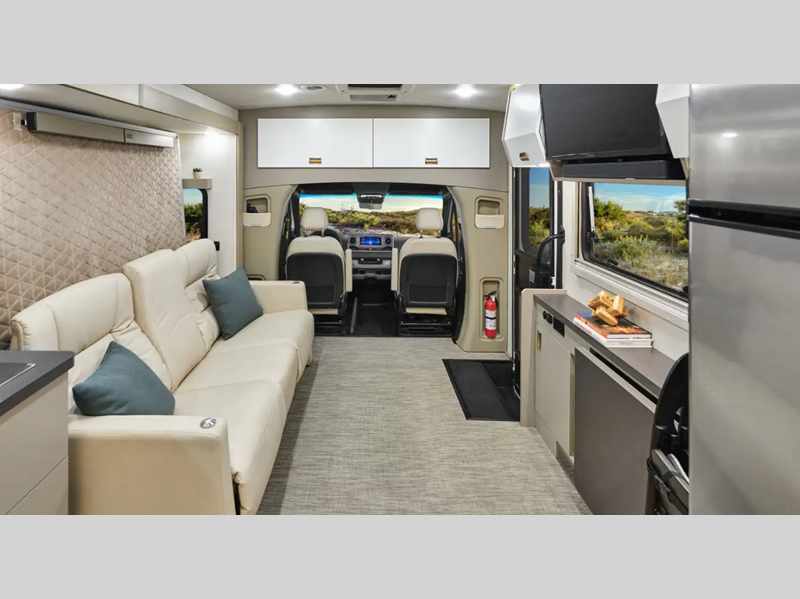

Interior

  • Stereo System AM/FM, Alarm Clock, CD/DVD Player, Input Jack, Bluetooth™, Two Speakers and Subwoofer
  • 28" HDTV (N/A 24D)
  • 32" HDTV (24D)
  • LED Lights
  • Ready for Satellite System
  • Monitor Panel
  • Amplified Digital HDTV Antenna
  • Roof Vent with Electric Lift and Ventilator Fan, Rain Cover, Remote Control (N/A with Available Powered Skylight)
  • Mini Blinds (Galley)
  • MCD Solar/Blackout Roller Shades
  • Tinted Coach Windows
  • Soft Vinyl Ceiling
  • Vinyl Flooring Throughout (24G Front to Bedroom)
  • Assist Bar
  • USB Charger

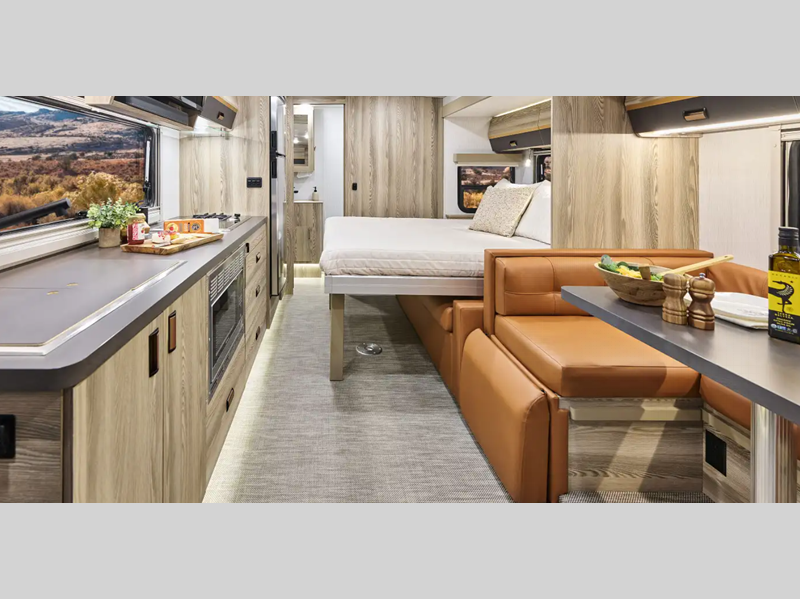

Galley

  • Laminate Countertops
  • Microwave/Convection Oven with Touch Control
  • 2-Burner Range Top with Glass Cover
  • Norcold® Double-Door Compressor Refrigerator/Freezer
  • Cold Water Filtration System
  • Water-Pump Switch with Light
  • Pantry (24D)
  • Double Sink

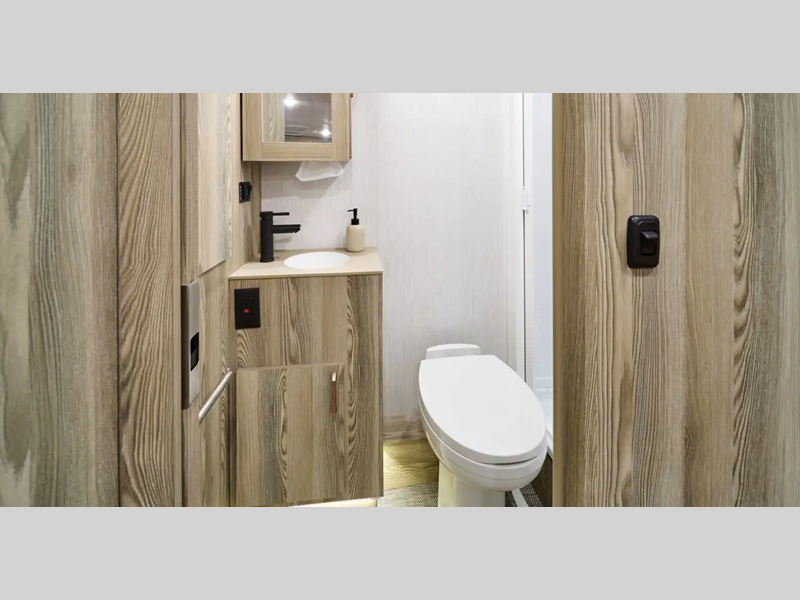

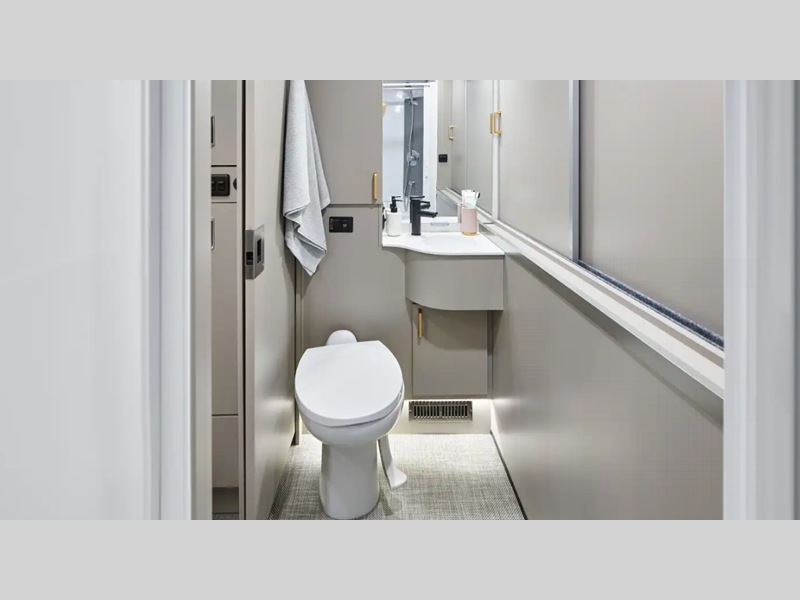

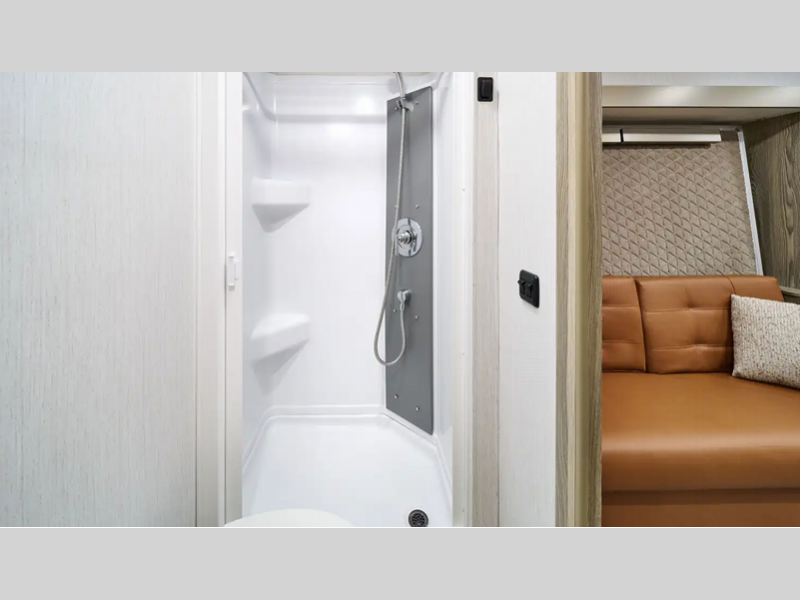

Bath

  • Shower 23" x 34" (24D)
  • Shower 25.5" x 36" (24G)
  • Shower 26" x 30" (24J)
  • Shower 19" x 28" x 34" (24V)

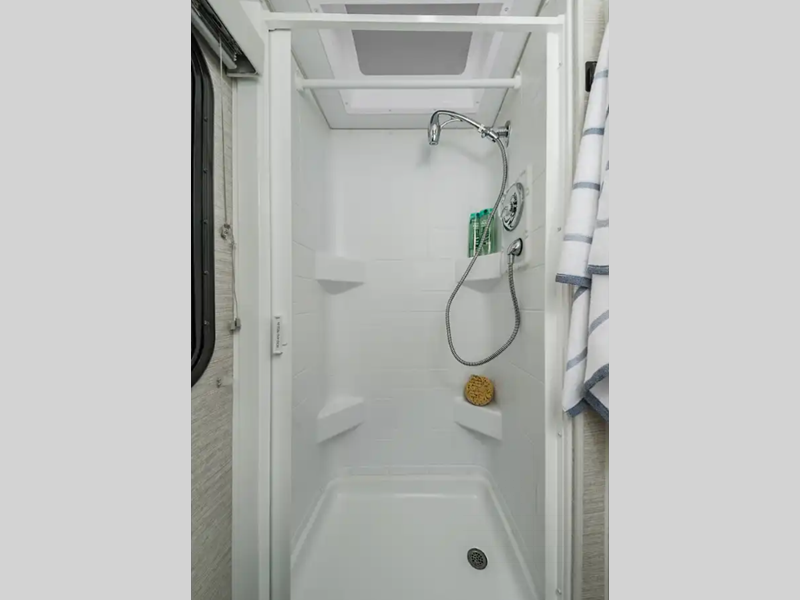

  • Retractable, Self-Cleaning Shower Screen
  • Shower Light with Wall Switch
  • Flexible Showerhead
  • Shower Skylight
  • Porcelain Toilet with Foot Pedal and Sprayer (24J, 24V)
  • Toilet with Foot Pedal (24D)
  • Porcelain Toilet with Electric Flush (24G)
  • Powered Roof Vent with Rain Cover
  • Towel Ring(s)
  • Towel Bar(s) (N/A 24D)
  • Tissue Holder
  • Robe Hook(s) (24D, 24J)
  • Medicine Cabinet

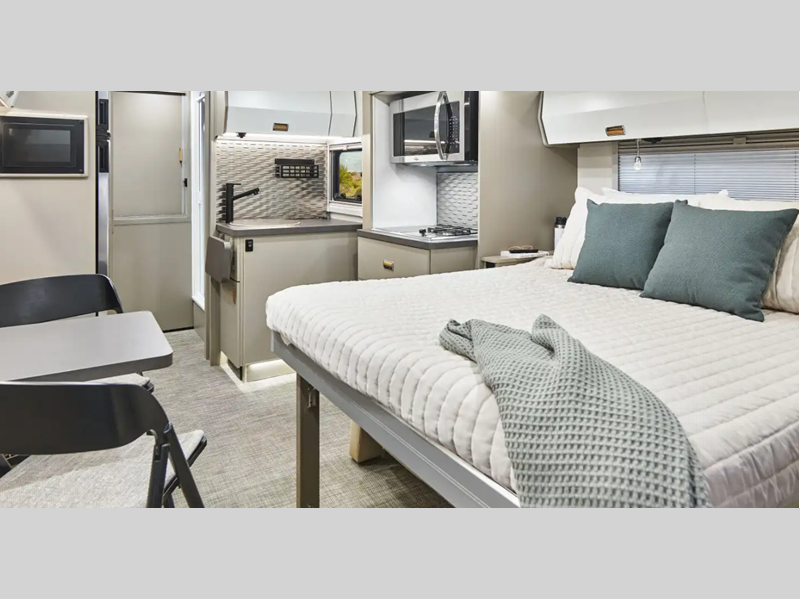

Bedroom

  • Corner Bed with Headboard, Foam Mattress, Mattress Cover, and Access to Storage Below (24J)
  • Queen Bed with Memory Foam Mattress and Mattress Cover (24G)
  • Flex Bed System Twin Beds/Queen Bed with Foam Mattresses and Access to Storage Below (24V)
  • Murphy+ Bed Queen Mattress, Euro Suspension System, Gel Topper (24D)
  • MCD Blackout Roller Shades
  • Room Divider Curtain (N/A 24G)

Exterior

  • Automatic Entrance Door Step(s)
  • LED Porch Light with Interior Switch
  • Stepwell Light with Interior Switch
  • Front and Rear Mud Flaps
  • Premium High-Gloss Skin
  • Powered Patio Awning with LED Lights (Full-Body Paint Option Includes Metal Wrap)

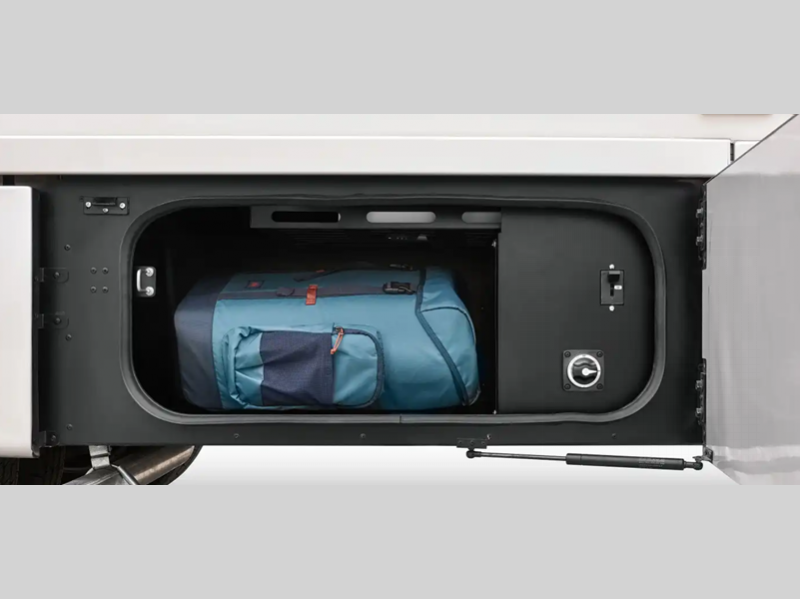

  • Lighted Storage Compartments
  • Exterior Speakers
  • Ladder (N/A 24G)

Heating and Cooling

  • 15,000 BTU Air Conditioner
  • 20,000 BTU Low-Profile Furnace
Electrical System
  • Service Center Light, Cable TV Input, 30 AMP Power Cord, Portable Satellite Dish Hookup, QuickPort® Service Connection Hatch
  • Auxiliary Start Circuit
  • Exterior AC Duplex
  • Exterior Antenna Jack
  • Battery Disconnect System (Coach)
  • Automatic Dual-Battery Charge Control
  • AC/DC Load Center, 45 AMP Converter/Charger
  • 2 Deep-Cycle, Group 24 RV Batteries
  • 3,600 Watt Cummins Onan MicroQuiet™ LP Generator
  • 1,000 Watt Pure Sine Wave DC/AC Inverter
  • Two 100 Watt Solar Panel/Battery Charger with Controller, Junction Box, and Plug for Additional Portable Solar Panel
Plumbing System

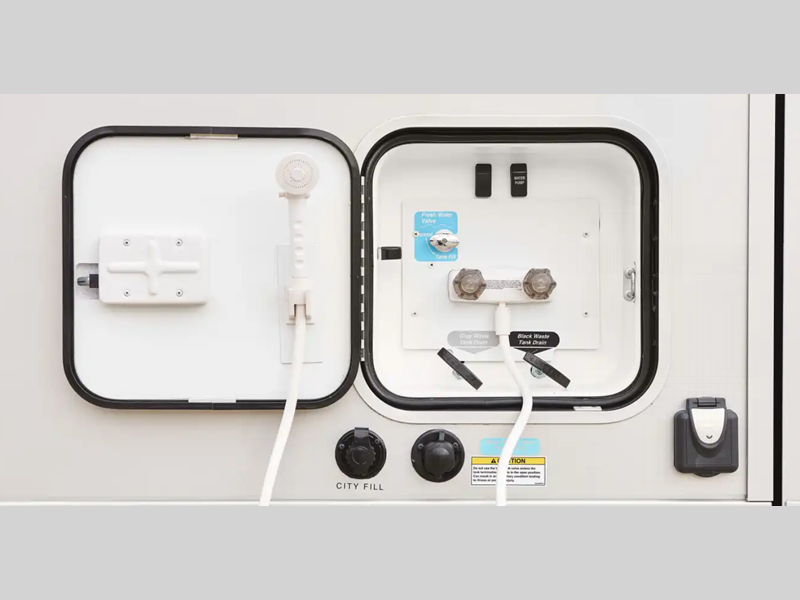

  • Service Center Color-Coded Labels, Pressurized City Water Hookup/Tank Diverter Valve, Drainage Valves, Exterior Wash Station with Lighted Pump Switch
  • 10' Sewer Hose
  • TrueLevel™ Holding Tank Monitoring System
  • 6 Gallon 110V/LP Water Heater with Energy Management System (N/A 24G, 24D)
  • Tankless Water Heater (24D, 24G)
  • Permanent-Mount LP Tank with Remote Fill with Power Switches
  • Winterization Package Water Heater Bypass Valve and Siphon Tube
  • On-Demand Water Pump
  • Lockable Water Tank Fill
  • Sewage Pump Macerator (24V)
  • Holding Tank Flushing System
Safety
  • LP, Smoke, and Carbon Monoxide Detectors
  • 10 BC Fire Extinguisher
  • Ground Fault Interrupter
  • Child Seat Tether Anchor (N/A 24V)
  • High-Mount Brake Lamps
  • Daytime Running Lamps

Warranty

  • 12-Month/15,000-Mile Basic Limited Warranty
  • 36-Month/36,000-Mile Limited Warranty on Structure
  • 10-Year Limited Parts-and-Labor Warranty on Roof Skin

Options

  • Stylized Chrome Wheels (N/A 24G)
  • Alcoa Forged Aluminum Wheels
  • 2-Point Electric Stabilizing System (Requires Alcoa Forged Aluminum Wheels 24G, 24J, 24V) (Required on 24D)
  • Large Screen Infotainment Center with Rand McNally RV GPS 9" Touch Screen Color Monitor with Split Screen Function, Rand McNally RV GPS Safe and Easy Routing, Amenities and Tools, Trips and Content, Turn-by-Turn Voice Guidance, AM/FM Radio, Handheld Remote, SiriusXM (Includes 90-Day Trial Subscription), iPod/iPhone Audio Integration, Bluetooth, Color Rearview Camera, USB Connection
  • Two Cab Seat Lounge Cushions
  • Sliding, Pleated Windshield Blinds
  • Mobileye Collision Avoidance System
  • JBL Premium Audio Tuned 180 Watt DSP amplifier with Five Speakers Including Subwoofer (24D Requires Alcoa Forged Aluminum Wheels)
  • Powered Skylight/Roof Vent with Sliding Screen and Pleated Shade (24D Requires Alcoa Forged Aluminum Wheels)
  • Dual-Pane Acrylic Windows
  • 24" HDTV (N/A 24D)
  • FROLI Deluxe Sleep System (24J, 24V)
  • Bike Rack (24D Requires Alcoa Forged Aluminum Wheels)
  • 15,000 BTU Air Conditioner with Heat Pump
  • 3,200 Watt Cummins Onan Diesel Generator
  • Heated Drainage System
  • Tankless Water Heater (24J, 24V)

Please see us for a complete list of features, options, and available warranty information!
All standard features and specifications are subject to change.

Manu-Facts:

Winnebago Industries, Inc., headquartered in Forest City, Iowa, is the leading United States (U.S.) manufacturer of recreation vehicles (RVs), used primarily for leisure travel and outdoor recreational activities.  Winnebago builds quality motor homes, travel trailers and fifth wheel products under the Winnebago®, Itasca®, ERA™ and SunnyBrook® brand names.

The company was founded in 1958 and has been producing motor homes since 1966, and now has re-entered the towable RV market since 2011 began. Winnebago Industries continues into the future with steady growth; commitment to quality; extensive research and testing, and a fantastic lineup of RV products!

The Company markets its recreational vehicles on a wholesale basis to a diversified dealer organization located throughout the U.S., and Canada.

Mission Statement at Winnebago Industries - "Moving forward with innovation and quality."  Winnebago remains committed to providing its customers high quality, great value, efficient design, and eye-catching style in all the recreational vehicles it produces.
